MingTian ShanGu MTRR Series Two‑Stage Series‑Connected Roots Blower | High Pressure Double‑Lobe Roots Blower Unit

MingTian ShanGu MTRR Series Two‑Stage Series‑Connected Roots Blower is a heavy‑duty high‑pressure roots blower unit adopting two three‑lobe roots blowers connected in series with inter‑cooler. Differential pressure 98‑196kPa, air capacity 0.61‑428 m³/min, motor power 5.5‑1000kW. QT450 ductile iron main housing, optional 2205 duplex stainless‑steel for corrosive gas working condition. Two‑stage compression lowers exhaust temperature, reduces internal leakage, achieves pressure beyond single‑stage roots blower limit. Widely used for high‑pressure pneumatic conveying, deep tank aeration, metallurgical blast furnace air supply, chemical high‑pressure process, EPC industrial projects. Complete skid‑mounted unit with intercooler, pipeline, valves and silencer accessories. Phone / WhatsApp: +8618766117068 | Email: [email protected], [email protected] | www.mtrootsblower.com

MTRR Two‑Stage Series‑Connected Roots Blower Introduction | MingTian ShanGu Brand

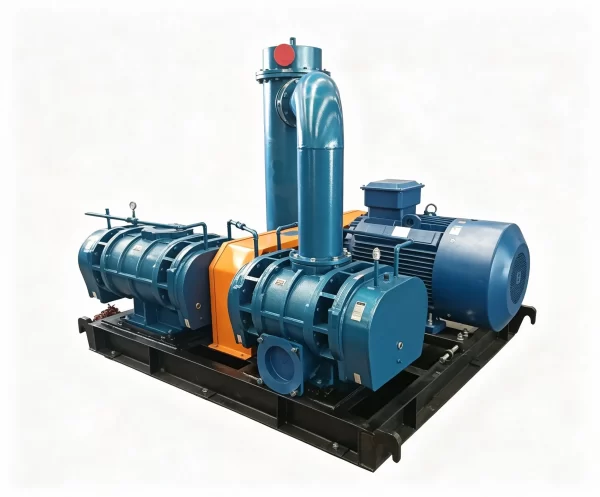

MingTian ShanGu MTRR series two‑stage series‑connected roots blower consists of two three‑lobe roots blower main units connected in series, equipped with independent intermediate inter‑cooler. Gas completes first‑stage compression, then passes through inter‑cooler for temperature reduction before entering second‑stage compression. This design solves the excessive exhaust temperature and limited compression ratio problems of single‑stage roots blowers. Single‑stage roots blower maximum stable differential pressure is 98kPa, while MTRR two‑stage series‑connected roots blower can reach up to 196kPa differential pressure.

The whole unit is supplied on common base frame as complete skid‑mount package. Main material adopts QT450 ductile iron, 2205 duplex stainless‑steel housing and nickel‑plated treatment are available for corrosive medium. Key components are processed by imported machining center for high precision, long service life and reliable continuous operation for heavy‑duty industrial working conditions.

Core Performance Features

• High volumetric compression efficiency, energy‑saving two‑stage compression design. Under same compression ratio, two‑stage structure reduces pressure difference of each stage and minimizes internal gas leakage.
• Low exhaust temperature & high operation safety. Built‑in inter‑cooler between two blower stages effectively cools compressed gas, avoids overheating risk under high‑pressure working condition.
• Low‑noise optimized main engine structure, absorbing mature technical advantages of MingTian ShanGu RSR / MTR heavy‑duty blower product line.
• Positive displacement forced gas delivery, 100% oil‑free gas conveying, no oil contamination for process gas medium.
• Imported manufacturing technology, key parts machined by imported processing center, high‑precision rotor assembly, long service life and high operational reliability.
• Compact skid‑mount integrated structure, convenient installation, operation and daily maintenance.
• Built‑in pressure and temperature monitoring protection, realize safe unit running protection for continuous industrial operation.

MTRR Series Complete Technical Specifications

Available MTRR Models:
MTRRB‑65, MTRRB‑100, MTRRD‑125, MTRRD‑130, MTRRD‑150, MTRRE‑150, MTRRE‑190, MTRRE‑200, MTRRE‑250, MTRRE‑300, MTRRF‑250, MTRRF‑295, MTRRF‑300, MTRRF‑350, MTRRF‑395, MTRRF‑400, MTRRG‑450, MTRRG‑500

• Discharge Bore Size: DN50(2″), DN80(3.15″), DN125(5″), DN150(6″), DN200(7.8″), DN250(9.85″), DN300(11.8″), DN350(13.8″), DN400(15.7″), custom bore size available per customer requirements
• Differential Pressure Range: 98‑196 kPa
• Air Capacity Range: 0.61‑428 m³/min
• Supporting Motor Power: 5.5‑1000 kW
• Rotor Type: Three‑lobe rotor
• Main Housing Material: QT450 ductile iron, optional 2205 duplex stainless‑steel / nickel‑plated anti‑corrosion version
• Transmission Type: Coupler direct drive, common base skid‑mount complete unit

Standard Complete Unit Accessories

General Standard Type Accessories

Tuyere take‑over, first‑stage blower, second‑stage blower, inter‑cooler & connecting pipeline, common base frame, foundation bolts, flexible connector, check valve, deflating valve, pressure gauge, inlet & outlet silencer with air filter, gear oil.

Nickel‑Plated Anti‑Corrosion Type Accessories

First‑stage blower, second‑stage blower, inter‑cooler & connecting pipeline, metal bellows, flexible connector, pressure gauge, outlet silencer with air filter, gear oil, common base frame, foundation bolts.

Typical Application Fields

• High‑pressure pneumatic conveying system
• Deep‑water tank aeration & wastewater treatment projects
• Metallurgical blast furnace air supply
• Chemical high‑pressure process gas supply
• Industrial EPC turn‑key projects requiring differential pressure above 100kPa
• High‑pressure gas boosting for biogas, coal‑gas and corrosive medium

Model Selection Guide: MTRR vs Other MingTian ShanGu Roots Blower Series

Model Series	Stage	Rotor	Max Differential Pressure	Core Positioning
RSR	Single‑stage	Three‑lobe	98kPa	General‑purpose medium‑small flow, wastewater, aquaculture, general pneumatic conveying
MTS	Single‑stage	Two‑lobe	98kPa	Super large flow economic two‑lobe blower, power plant, cement plant large‑flow low‑pressure working condition
MTRF / MTRG / MTRH	Single‑stage	Two‑lobe	58.8‑88.2kPa	MTR heavy‑duty two‑lobe platform for low‑medium pressure large‑flow application
MTRR	Two‑stage series‑connected	Three‑lobe	196kPa	Special high‑pressure blower for pressure＞98kPa scenarios, equipped with intermediate inter‑cooler

Key Selection Boundary: Working pressure ≤98kPa: choose single‑stage blower RSR / MTS / MTRF / MTRG / MTRH. Working pressure＞98kPa (100‑196kPa): must adopt MTRR two‑stage series‑connected roots blower, single‑stage blower cannot run stably long‑term under this pressure range.
Notice: MTRR maximum air flow is 428 m³/min. Projects require flow over 428 m³/min together with high pressure need special custom engineering solution.

Contact Us for Quotation & Technical Datasheet

If you need technical datasheet, CAD drawing, anti‑corrosion custom solution or price quotation for MingTian ShanGu MTRR series two‑stage series‑connected roots blower, please get in touch with us:

Phone / WhatsApp: +8618766117068
Email: [email protected] ; [email protected]
Official Website: www.mtrootsblower.com

FAQ

Q1: What is the biggest advantage of MTRR two‑stage series‑connected roots blower compared with single‑stage roots blower?
A: MTRR breaks the 98kPa pressure limit of single‑stage roots blower, maximum differential pressure reaches 196kPa. Two‑stage compression with inter‑cooler effectively reduces exhaust temperature and gas leakage, ensures stable continuous high‑pressure operation.

Q2: Can MTRR handle corrosive gas medium?
A: Yes. Standard housing is QT450 ductile iron. We supply optional nickel‑plated treatment or 2205 duplex stainless‑steel housing for corrosive gas application.

Q3: What delivery condition for MTRR unit?
A: MTRR is delivered as complete skid‑mount unit including dual blowers, inter‑cooler, pipeline, valves, silencer and base frame, ready for on‑site installation.
