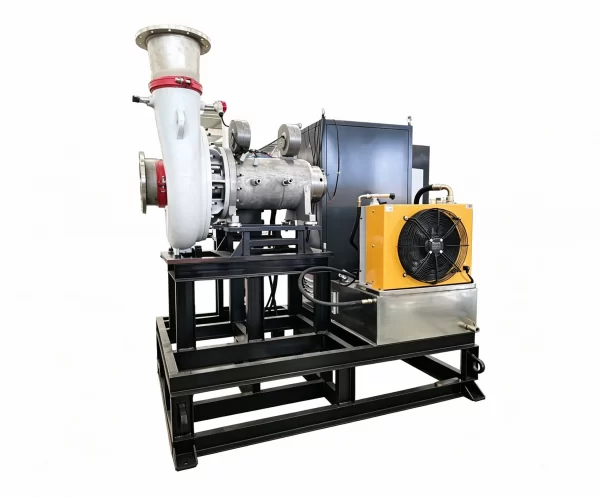

MingTian ShanGu SC‑V Series Maglev Bearing Turbo Vacuum Pump | Oil‑Free Energy‑Saving Magnetic Levitation Turbine Vacuum Pump

MingTian ShanGu SC‑V Series Maglev Bearing Turbo Vacuum Pump is oil‑free high‑efficiency maglev vacuum equipment adopting five‑degrees‑of‑freedom magnetic bearing technology, high‑speed permanent‑magnet synchronous motor and three‑dimensional flow impeller. Energy‑saving rate up to 40 % compared with traditional water‑ring vacuum pump, noise ≤85dB(A), zero‑lubricating‑oil, no working water required. Impeller made of aviation‑grade aluminum alloy, complete skid‑mounted integrated unit. Models: SC55V, SC75V, SC110V, SC132V, SC150V, SC200V. Widely applied for papermaking, power plant, chemical, food, pharmaceutical and EPC energy‑saving retrofit vacuum projects. Phone / WhatsApp: +8618766117068 | Email: [email protected], [email protected] | www.mtrootsblower.com

SC‑V‑Series Maglev Bearing Turbo Vacuum Pump Overview | MingTian ShanGu Brand

MingTian ShanGu SC‑V‑series maglev bearing turbo vacuum pump is new‑generation energy‑saving vacuum equipment developed by Shandong MingTian Machinery Group under ShanGu brand. Core components adopt active magnetic levitation bearing, high‑speed permanent‑magnet synchronous direct‑drive motor, three‑dimensional flow impeller and fully independent intelligent frequency‑conversion control system.

The rotating rotor is suspended by controllable electromagnetic force without mechanical contact and friction. It requires no lubricating oil and no circulating working water, delivering clean oil‑free vacuum source. Complete pre‑assembled skid‑mount unit for simple on‑site installation. It is ideal replacement for traditional water‑ring vacuum pump and roots vacuum pump for new‑build plant and energy‑saving renovation projects.

Key material specification: Impeller adopts aviation‑grade aluminum alloy, five‑axis integrally machined, 100 % radiographic inspection and 115 % overspeed test; unit cabinet adopts high‑strength carbon steel sheet metal; magnetic bearing and motor core components adopt high‑grade imported raw material; anti‑corrosion surface treatment optional for corrosive gas. Certified with ISO9001, ISO14001, ISO45001 and CE.

Core Product Features & Advantages

• Outstanding energy‑saving performance: Up to 40 % energy saving compared with traditional water‑ring vacuum pump; high‑efficiency frequency converter efficiency reaches 98 %.
• Oil‑free & water‑free operation: Magnetic levitation bearing without mechanical contact, no lubricating oil and no working circulating water required, providing clean oil‑free vacuum source without medium contamination risk.
• Low‑noise & low‑vibration: No gear‑transmission friction noise; overall operating noise ≤85dB(A), nearly zero‑vibration during unit running.
• High‑efficiency three‑dimensional flow impeller: Designed by advanced 3‑D flow theory; aviation‑grade aluminum alloy five‑axis integral machining; wide high‑efficiency working range; strict 100 % radiographic inspection and 115 % overspeed test for full‑life‑cycle safety and reliability.
• High‑speed permanent‑magnet synchronous direct‑drive motor: Compact size, high power density; direct coupling with impeller eliminates intermediate transmission loss; equipped with power‑off self‑generation emergency protective bearing system to prevent rotor damage during sudden power‑off.
• Independent intelligent DSP+FPGA control system: Real‑time collects more than 16000 signals per second; automatically adjusts rotating speed according to vacuum‑pipe‑network condition; supports multiple working modes; reserved remote real‑time monitoring function.
• Easy installation & commissioning: Compact skid‑mount integrated design; no heavy lifting equipment required; simple pipeline and power‑supply connection on‑site; one‑button start‑stop operation.
• Low‑maintenance design: Without gear‑box and oil‑circuit system; daily maintenance mainly is filter‑element cleaning & replacement, greatly reduces long‑term operation‑cost and downtime.
• Multi‑safety interlock‑protection: Anti‑surge protection, over‑temperature, over‑vibration, over‑current multi‑safety interlock protection, guarantee 24‑7 continuous industrial vacuum‑system operation.

Complete Technical Specifications

Available SC‑V‑Series Models:
SC55V, SC75V, SC110V, SC132V, SC150V, SC200V

• Vacuum degree range: 1‑60 kPa absolute vacuum
• Pumping‑speed adjustment range: 45‑100 % under rated vacuum condition
• Material: Aviation‑grade aluminum alloy impeller; carbon‑steel unit cabinet; imported core magnetic‑bearing components; anti‑corrosion surface‑treatment optional for corrosive gas
• Drive‑mode: High‑speed permanent‑magnet motor direct‑drive, no gear‑box
• Bearing‑system: Five‑degrees‑of‑freedom active magnetic levitation bearing with emergency protective bearing
• Noise level: ≤85 dB(A)
• Certification: ISO9001, ISO14001, ISO45001, CE

Note: The pumping‑speed data is tested under standard condition. For accurate selection, please consult MingTian ShanGu technical engineers according to actual on‑site working‑condition.

Typical Application Fields

• Papermaking industry vacuum dewatering & vacuum system
• Power‑plant condenser vacuum pumping system
• Chemical‑industry vacuum distillation, vacuum filtration and vacuum drying process
• Pharmaceutical‑industry vacuum drying & de‑aeration process
• Food‑processing vacuum de‑aeration, vacuum concentration production line
• New‑energy‑battery vacuum‑processing procedure
• Re‑trofit project replacing traditional water‑ring / roots vacuum pump
• Domestic & overseas EPC turn‑key industrial vacuum‑system projects

Installation Requirement Reminder

• Reinforced‑concrete flat and solid foundation is required; avoid hollow floor or interlayer structure.
• Maintenance clearance requirement: front / back / left / right side minimum ≥1 m; top clearance ≥1.5 m; spacing between two adjacent vacuum‑pump units ≥1 m for disassembly and routine inspection.
• Delivered as complete skid‑mount unit; users only finish on‑site pipeline and power‑supply connection.

Contact Us for Quotation & Technical Documentation

If you need performance curve, installation drawing, technical datasheet or price quotation for MingTian ShanGu SC‑V‑series maglev bearing turbo vacuum pump, please get in touch:

Phone / WhatsApp: +8618766117068
Email: [email protected] ; [email protected]
Official Website: www.mtrootsblower.com

FAQ

Q1: How much energy can SC‑V maglev turbo vacuum pump save versus traditional water‑ring vacuum pump?
A: Under equivalent working‑condition, SC‑V‑series maglev turbo vacuum pump can reach up to 40 % energy‑saving compared with traditional water‑ring vacuum pump, greatly cutting electricity‑cost for papermaking, chemical and power‑plant vacuum‑system.

Q2: Does maglev turbo vacuum pump need lubricating oil or circulating water?
A: No. Magnetic‑levitation bearing runs without mechanical contact. This vacuum‑pump requires zero lubricating‑oil and zero circulating working‑water, outputs clean oil‑free vacuum source.

Q3: What protection when sudden power‑off occurs?
A: Equipped with power‑off self‑generation and emergency protective bearing system. Once power‑failure occurs, rotor inertia drives motor self‑generating electricity to sustain magnetic‑bearing control until rotor safely lands on mechanical protective bearing, avoiding equipment damage.

Q4: Can SC‑V‑series maglev vacuum pump be used for old‑plant energy‑saving renovation?
A: Yes, widely used for retrofitting replace old water‑ring vacuum pump and roots vacuum pump for papermaking, chemical, pharmaceutical factories, suitable for EPC renovation projects.
