Diesel Engine Roots Blower | Portable Mobile Roots Blower for Field Operation
Diesel Engine Roots Blower
Engine Driven Portable Roots Blower for Off‑Grid Field Working

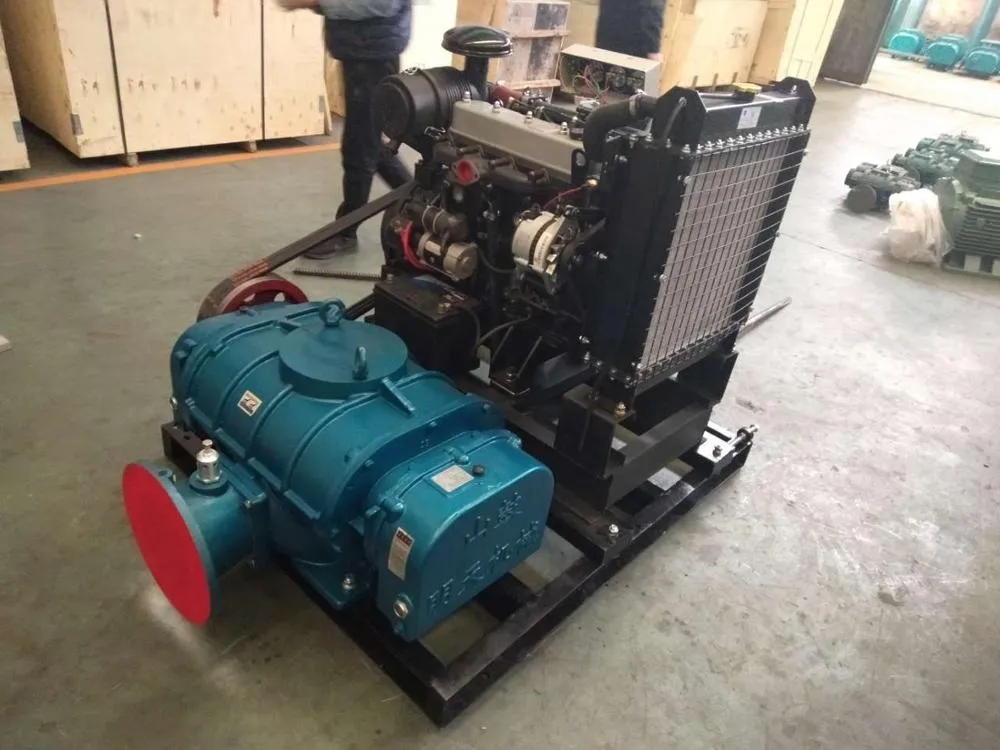

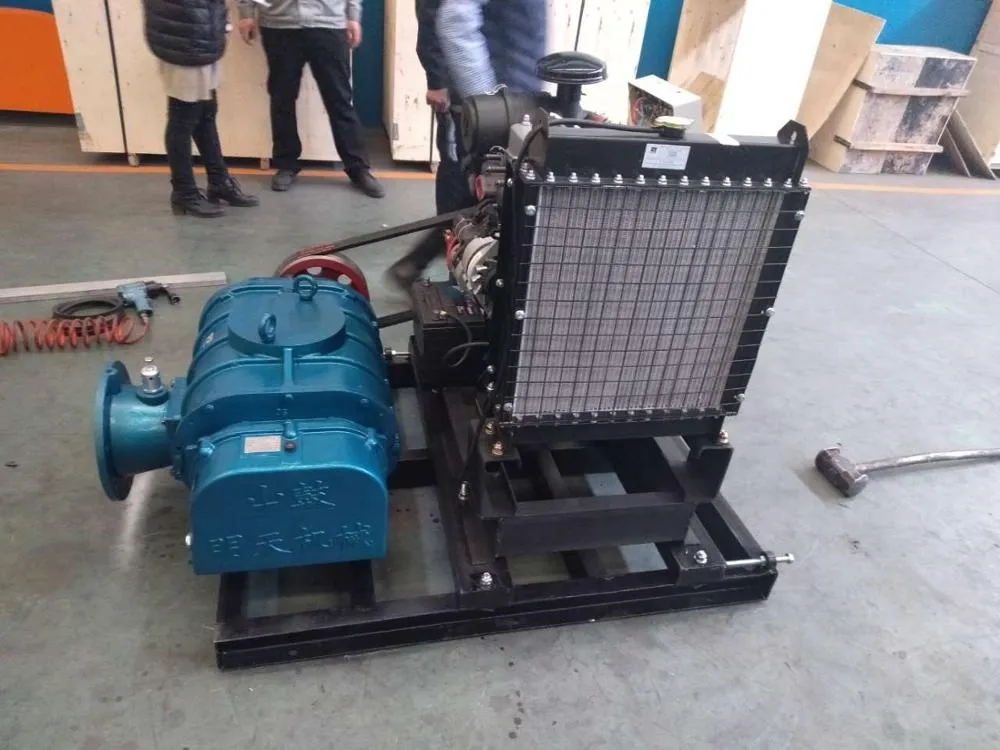

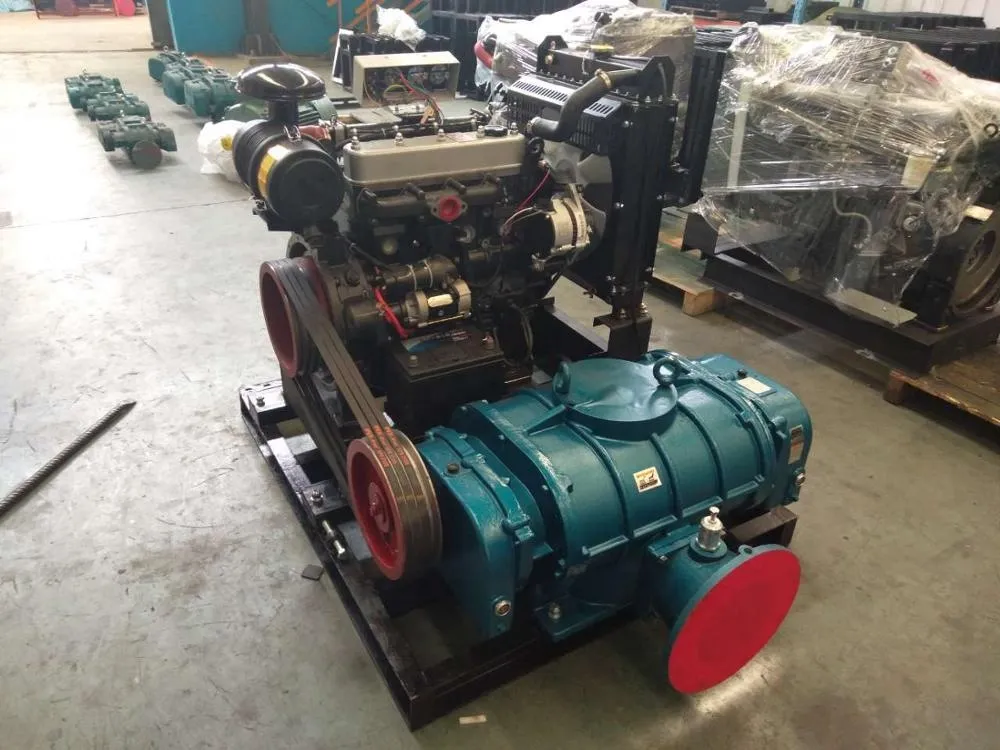

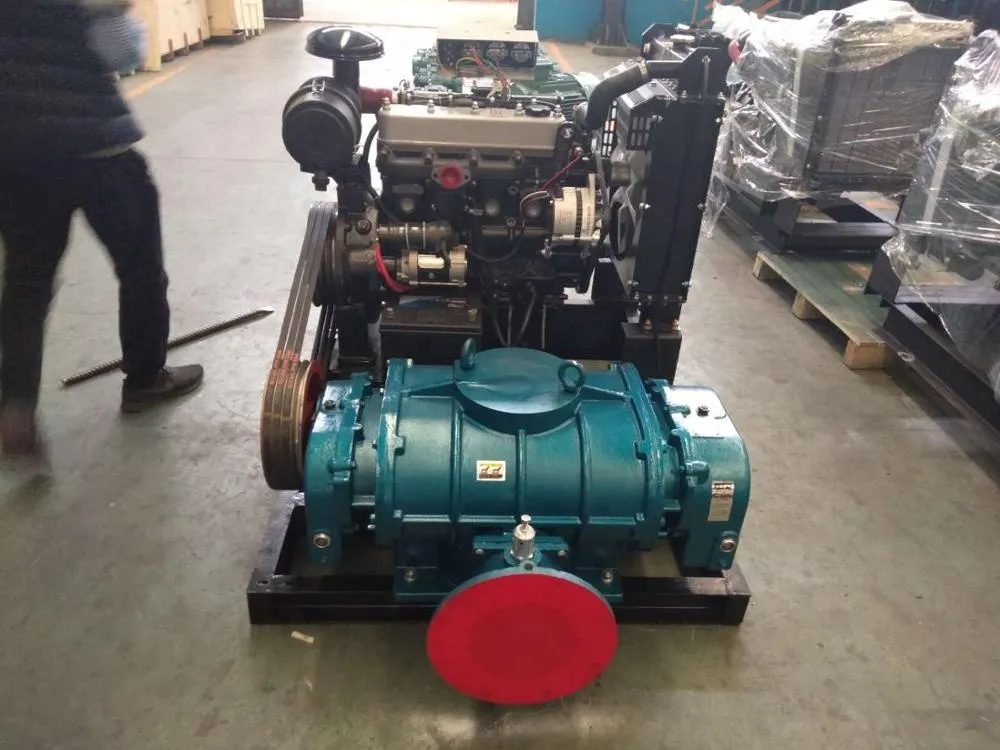

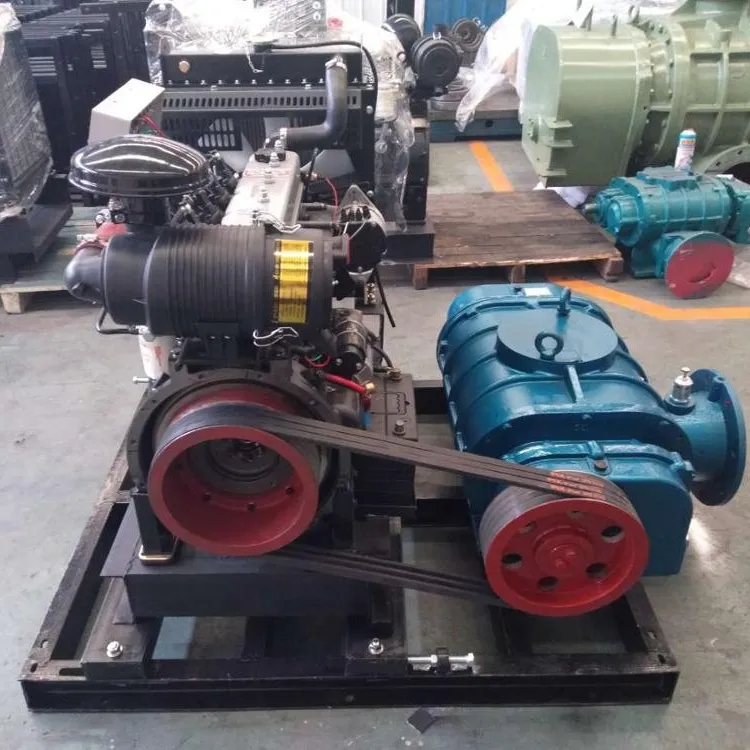

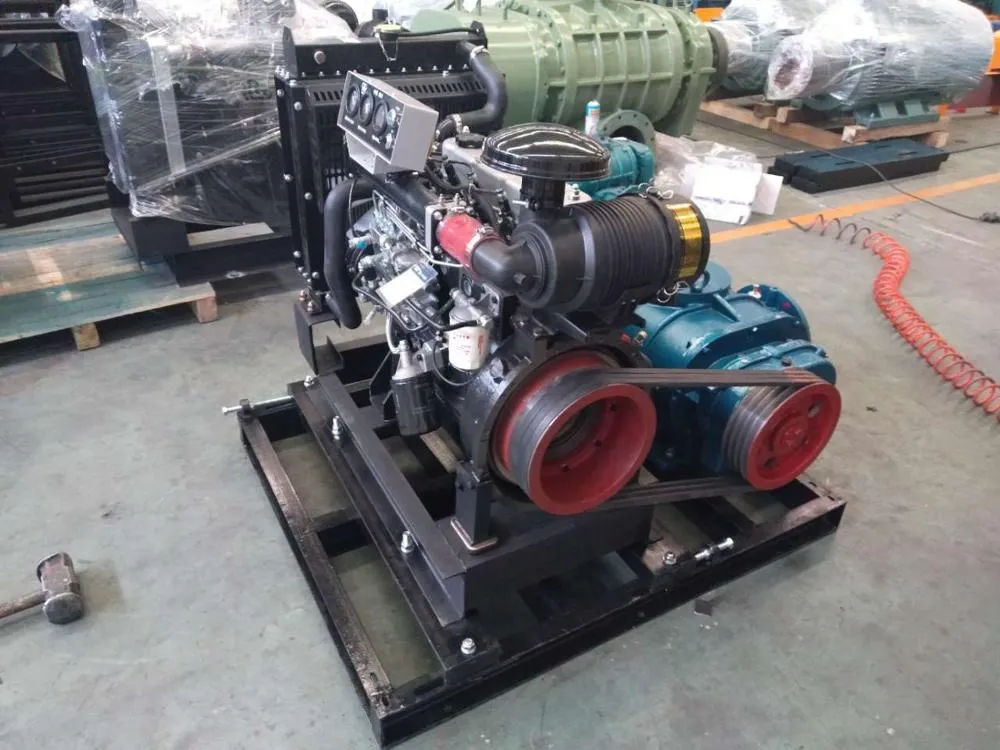

MingTian ShanGu Diesel Engine Roots Blower is skid‑mounted mobile roots blower unit, driven by diesel engine instead of electric motor. It works normally in sites without stable power supply, widely used for temporary wastewater aeration, biogas recovery, emergency pneumatic conveying, pipeline purging and remote site construction.
Core Product Features
- Skid integrated design, easy towing and mobile transfer, suitable for outdoor field operation
- Independent diesel power system, no external power cable required
- Adopt QT450 ductile iron three‑lobe / two‑lobe roots rotor, high rigidity, low vibration
- Heavy‑duty bearing, imported oil seal, long continuous running service life
- Optional silencer, air filter, safety valve, oil tank and control panel
- Customizable flow & pressure range, support trailer chassis modification
Main Technical Parameters
| Drive Type | Diesel Engine Driven, skid / trailer mounted |
| Air Flow Range | 2 ~ 1057 m³/min |
| Differential Pressure | 9.8 ~ 98 kPa |
| Blower Models Available | MTS, MJSR, RSR, MTRF, MTRG, MTRH series |
| Engine Brand Option | Weichai, Yuchai, Cummins or customer specified |
| Material | Blower casing: HT250; Rotor: HT250; Seal: FKM / EPDM |
Application Fields
- Emergency wastewater treatment aeration for remote projects
- Biogas / landfill gas extraction without grid power
- Off‑road pneumatic conveying of grain, powder, plastic pellets
- Pipeline cleaning, tank purging, mine temporary ventilation
- Mobile aquaculture oxygen enrichment for large fish farms
